GVWR: 16,000 lbs.
Weight:  4,800 lbs

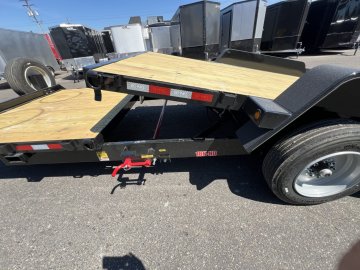

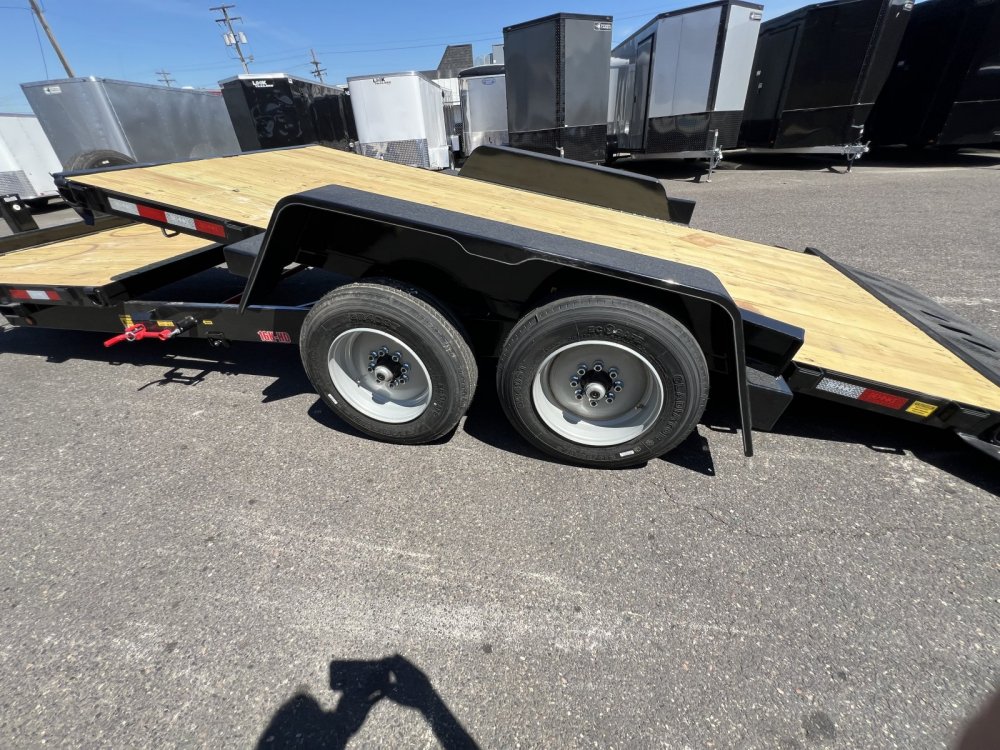

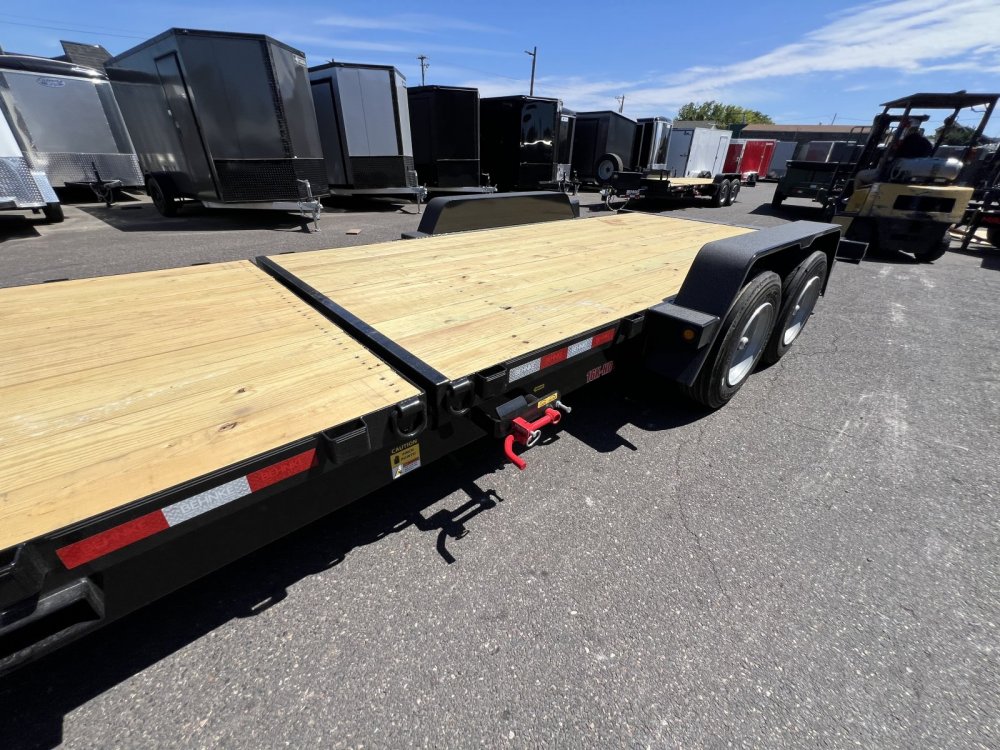

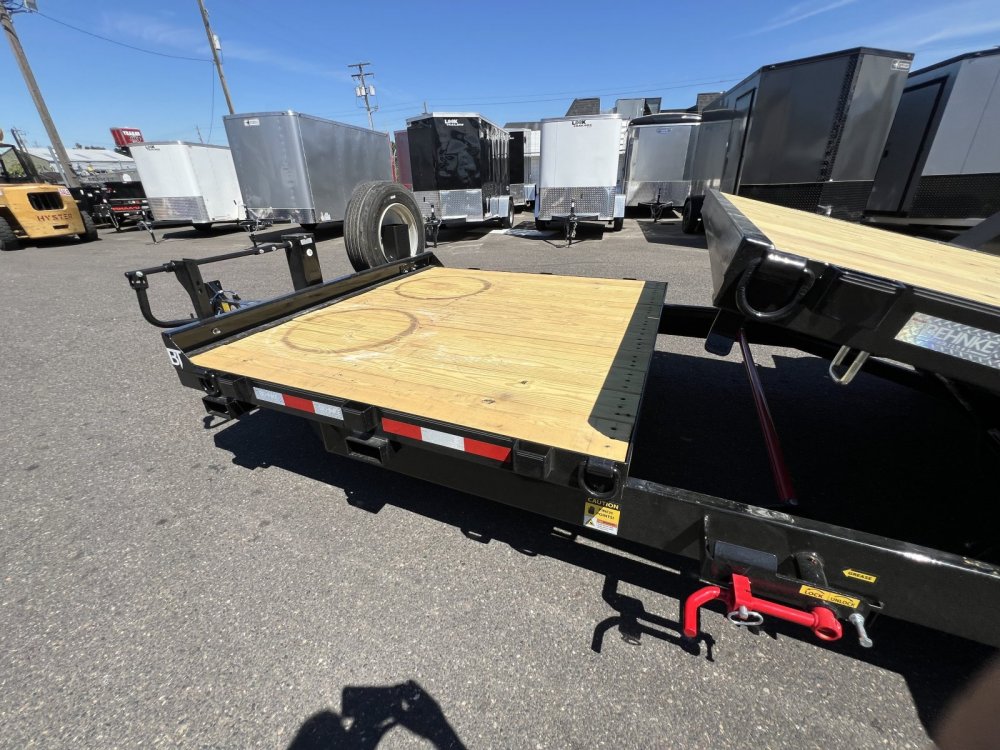

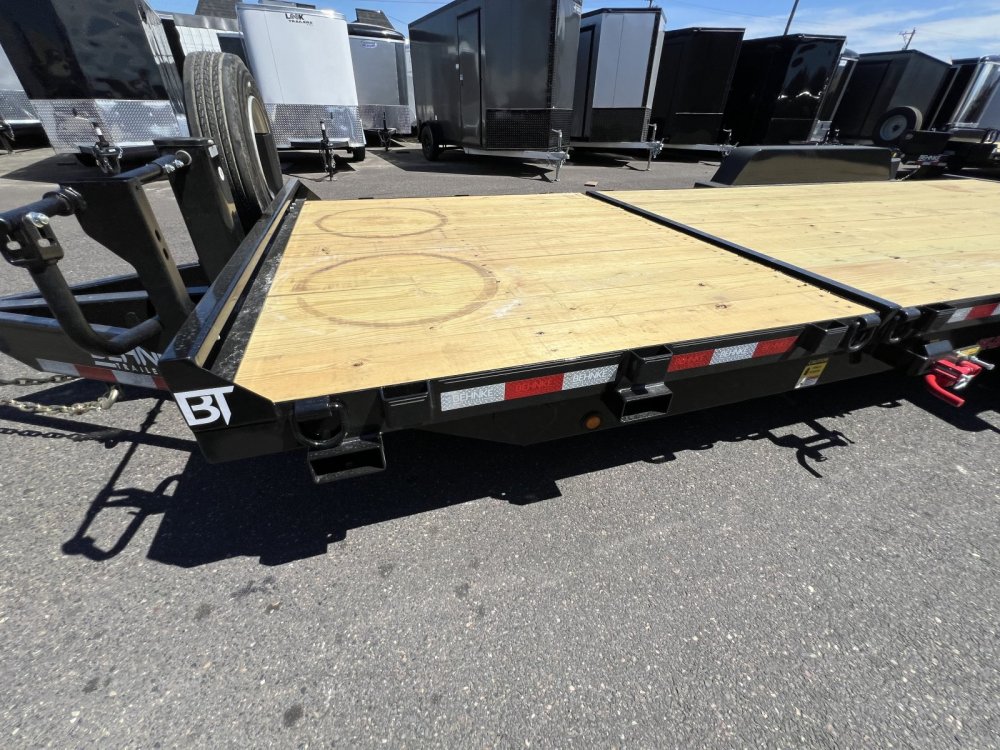

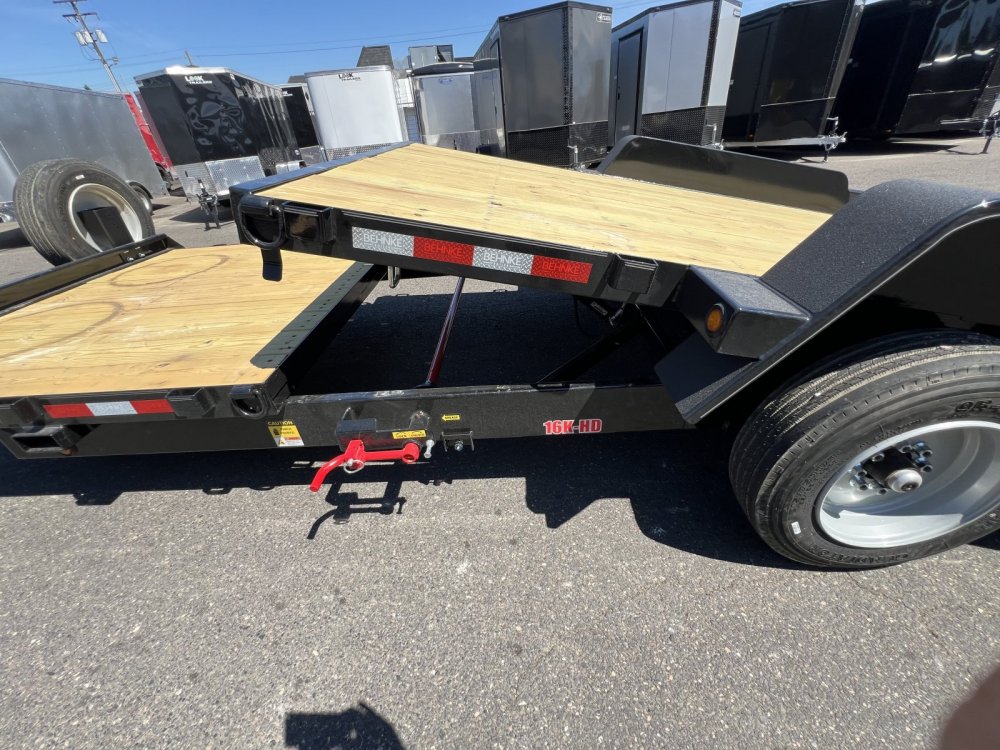

Length:  6' stationary + 16' tilt
Width:  83" between fenders
Frame:  8 x 2 x 3/16 tube
Unloaded Deck Height:  22" or 25"
Side Rails:  5 x 3 x 1/4 angle (flush floor)
Crossmembers:  3" channels (12" ¢'s)
Fenders:  HD Fully Welded 11 gauge
Jack:  Single 12K dropleg

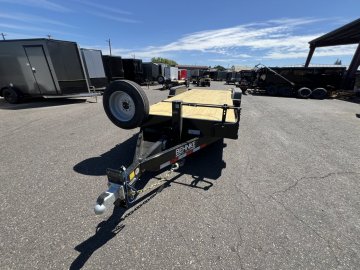

Hitch:  2 5/16ʺ adj. coupler or pintle
Safety Chains:  (2) 3/8" Gr. 43
Tie-Downs:  stake pockets and (4) D-rings
Storage:  Chain tray in tongue

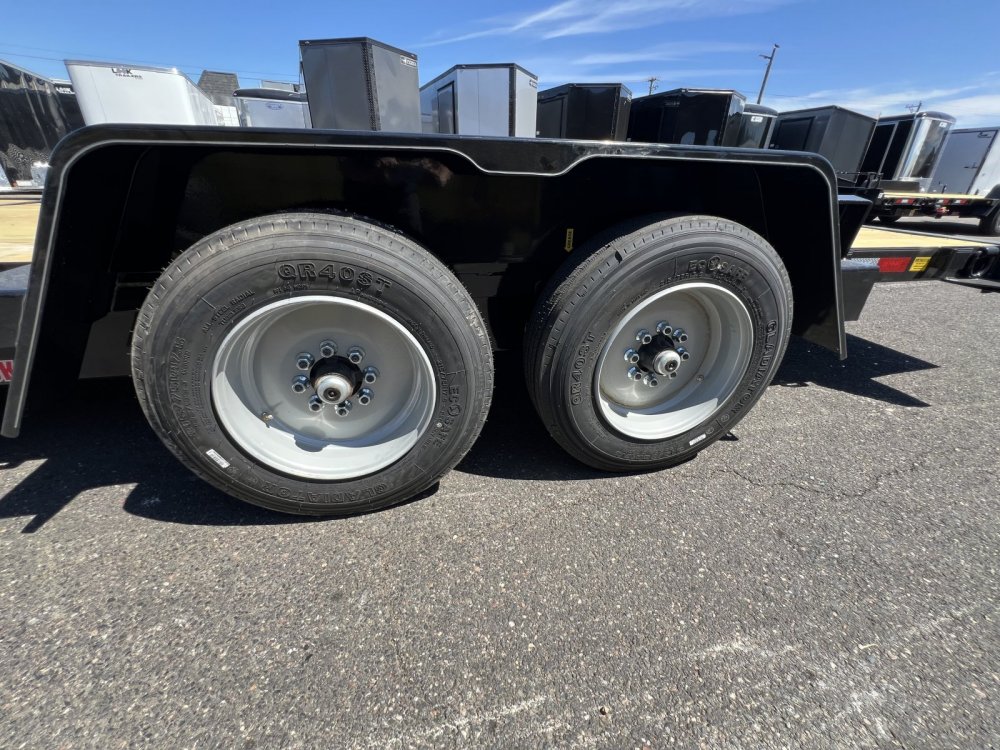

Axles:  8,000 lb. Dexter
Suspension:  Torflex

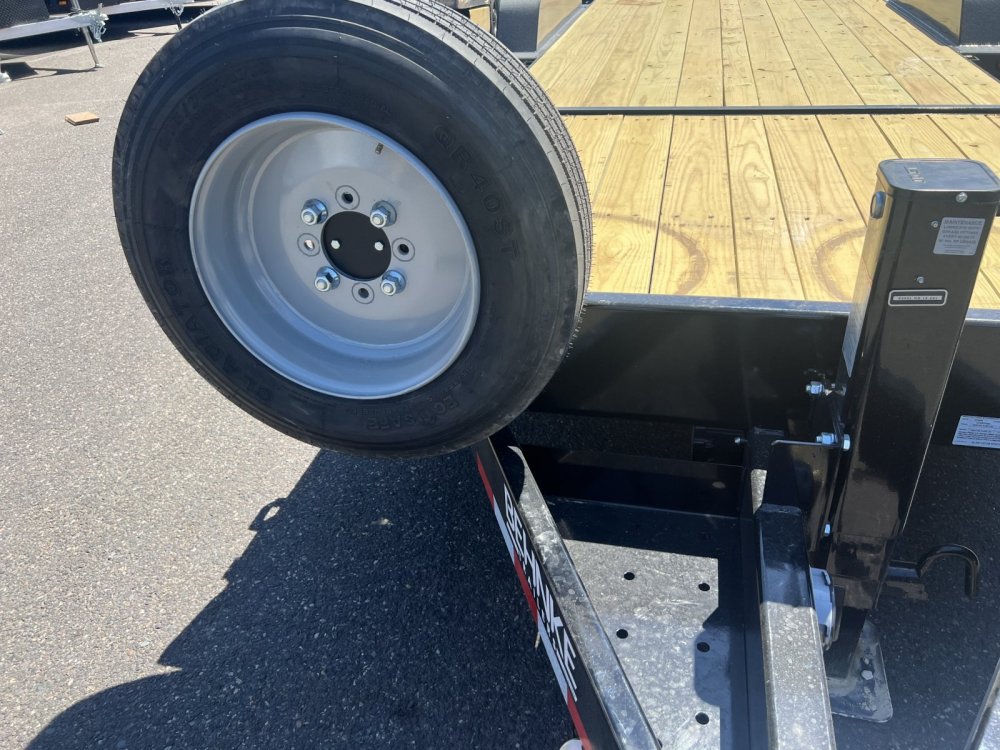

Tire and Wheel:  235/80R-16E or 215/75R-17.5H single

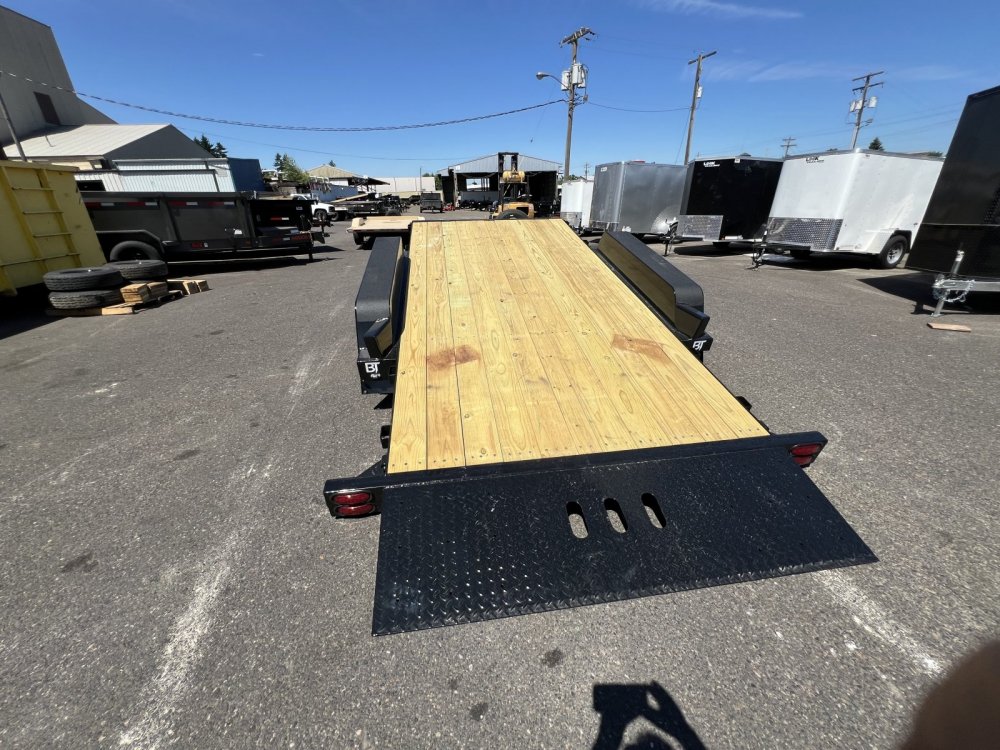

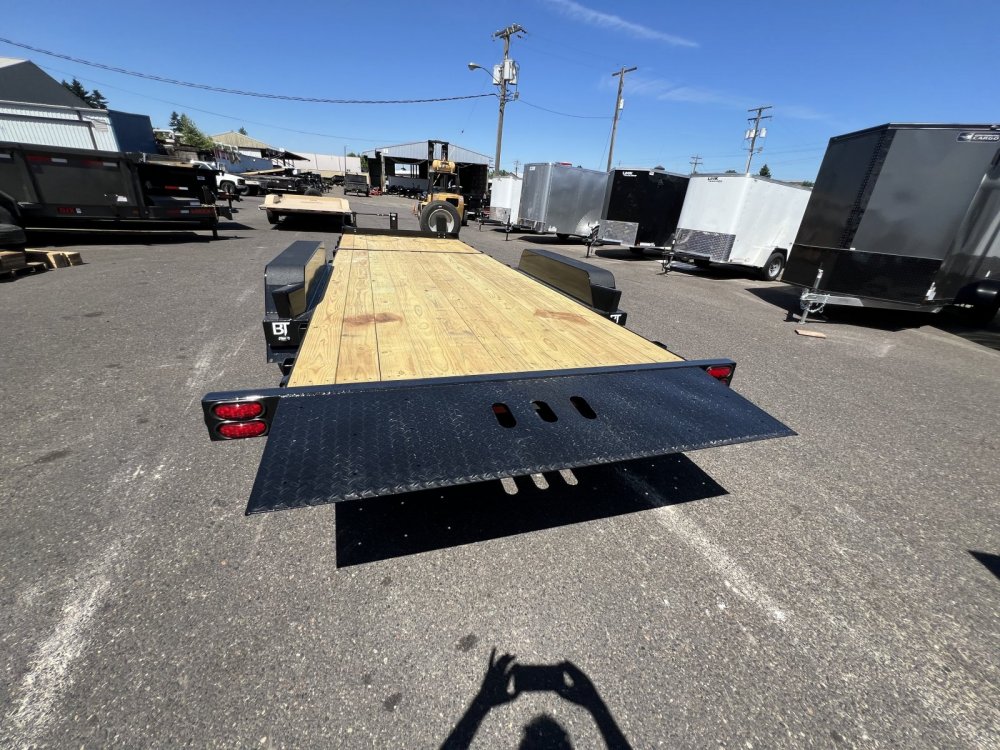

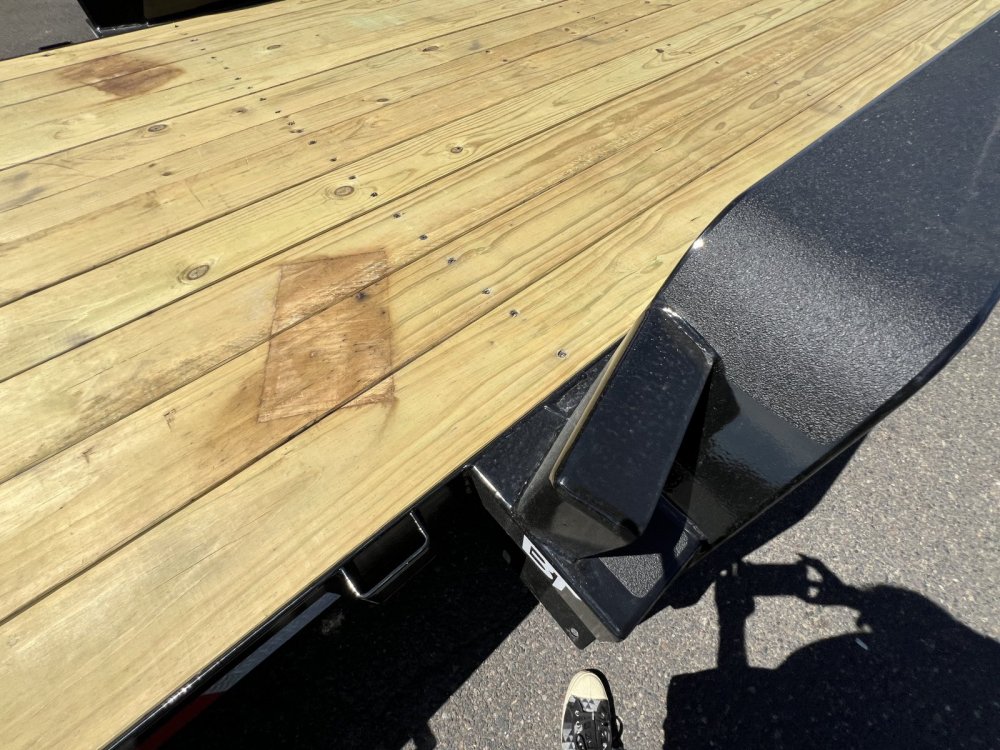

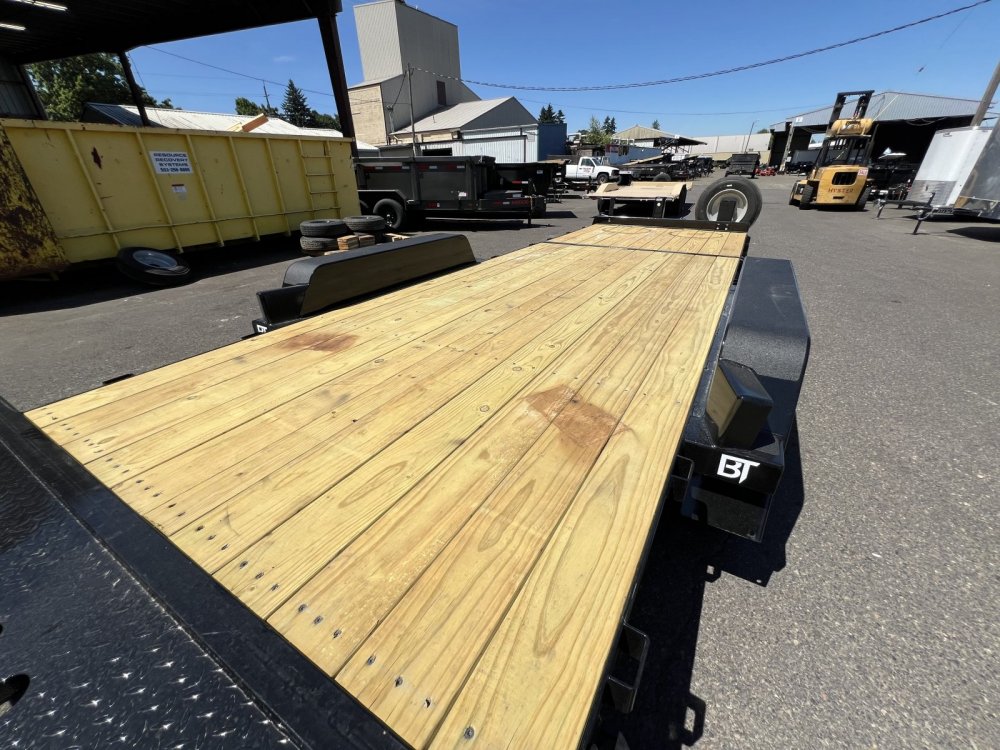

Decking:  2 x 8 No. 1 Treated pine
Lights:  LED flush mount
Elect. Plug:  RV plug
Finish and Paint:  Bead blasted, acid washed, zinc rich primed, powder coated
